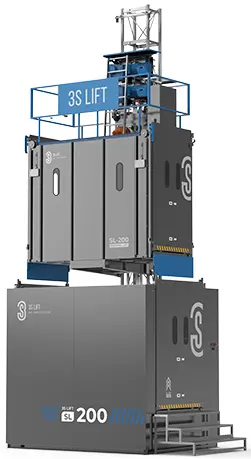

Rack and Pinion Industrial Elevator
Video
product description
Mast Tie
Structural member that connects the mast to industrial equipment facilities or other fixed structures, providing side support for the mast.

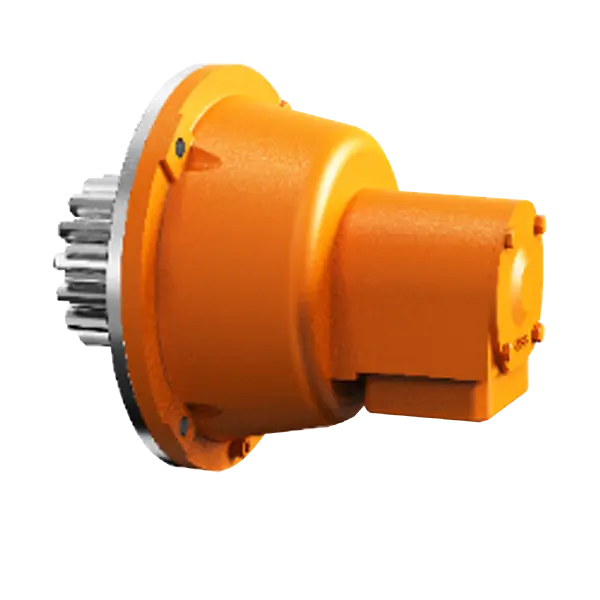

Overspeed Safety Device
Mechanical safety protection device that prevents the cage from falling, controlled by non-electric, non-pneumatic, and non-manual methods.

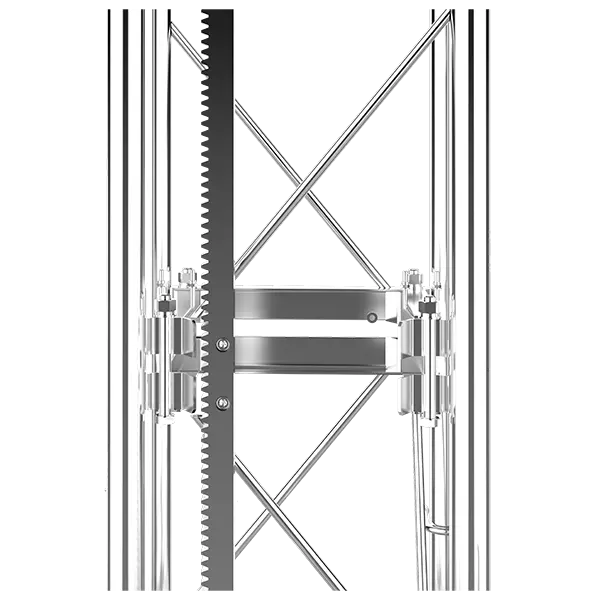

Mast
Structural frame that supports and guides the cage, counterweight (if applicable).

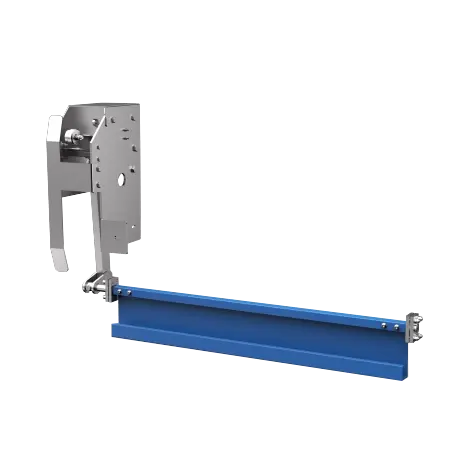

Interlocking Device
Once the cage has departed from the landing, both the cage gate and all landing gates are securely locked by mechanical locks, rendering them unable to be opened in the conventional manner. In the event that either the landing gate or the cage gate is inadvertently opened while the cage is in motion, the cage will immediately cease its movement.

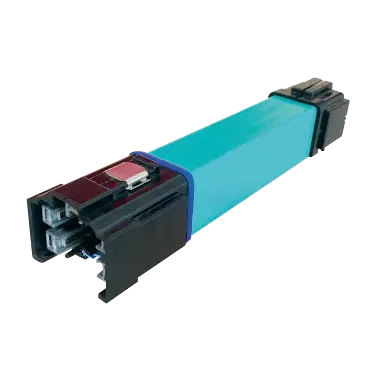

Insulated Conductor Rail
Supply power to mobile devices.

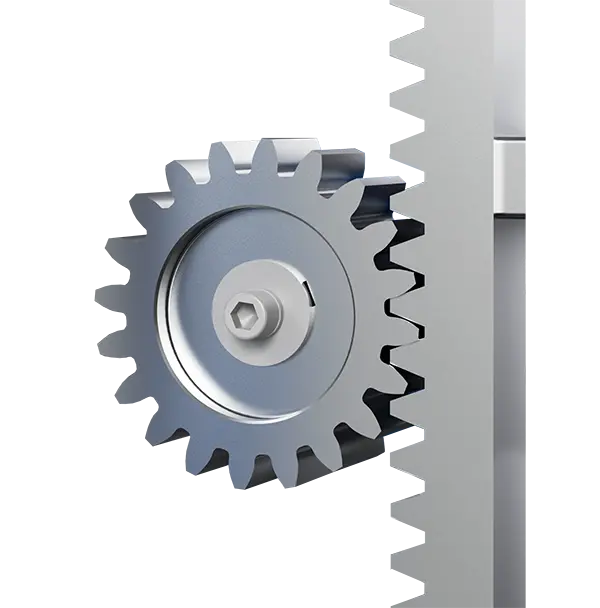

Rack and Pinion Drive
A forced drive system.

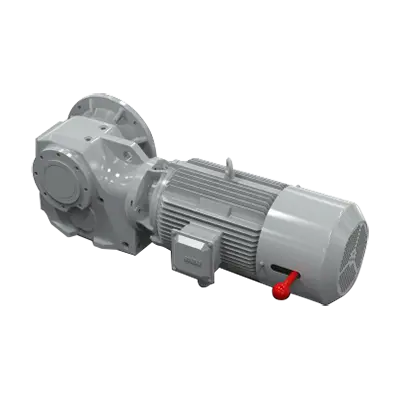

Gear Motor
An integration of a gearbox and a motor is employed, where the gearbox serves to decrease the motor's speed while simultaneously increasing its output torque. This combination makes the system versatile and suitable for a wide range of operating conditions.

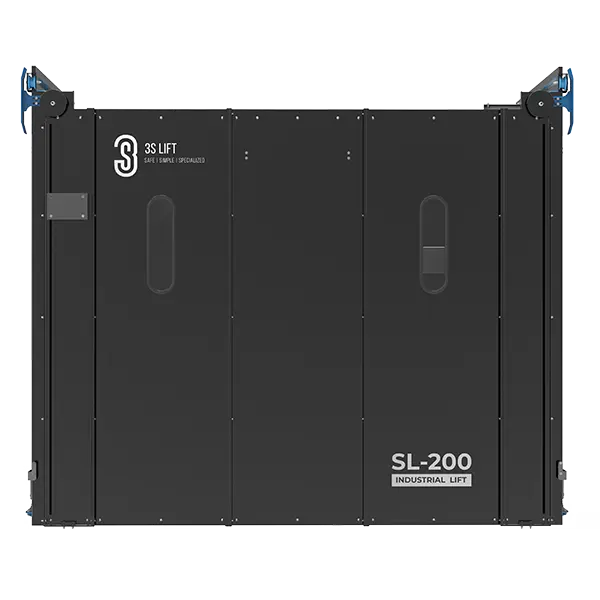

Automatic leveling
A feature enabling the cage to halt with millimeter-level precision at a designated landing level is achieved through the integration of high-precision encoders or sensors alongside an advanced logic algorithm.
Key Features
Progressive overspeed safety device
Interlocking mechanism for cage and landing gates
Anti-overrun design at top and bottom
Overload detection system
Multiple limit switches for safety
Anti-tilt hook for cage stability
Manual lowering function for power outages
Motor overheating protection system
Trapdoor located at the cage top
Operating alarm with both audible and visual signals
Evacuation ladder for emergency exits
Personal fall arrest system
Specifications
Industrial Elevator SL200
Model |
SL200 |
Rated load |
2000 kg |
Max. number of persons |
24 |
Rated speed |
0-36 m/min |
Working voltage |
400 V, 50/60 Hz |
Motor power |
2×15 kW |
Internal cage dimensions (length × width × height) |
3000 mm × 1500 mm × 2200 mm |
Corrosion resistance rating |
≥ C4 |
Service life |
40 years |
Industrial Elevator SL50
Model |
SL50 |
Rated load |
500 kg |
Max. number of persons |
4 |
Rated speed |
0-36 m/min |
Working voltage |
400 V, 50/60 Hz |
Motor power |
11 kW |
Internal cage dimensions (length × width × height) |
1200 mm × 1000 mm × 2200 mm |
Corrosion resistance rating |
≥ C4 |
Service life |
40 years |

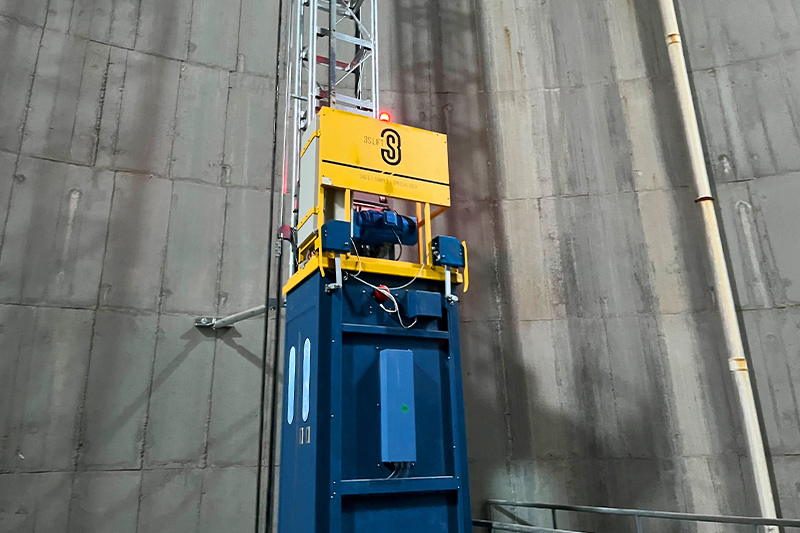

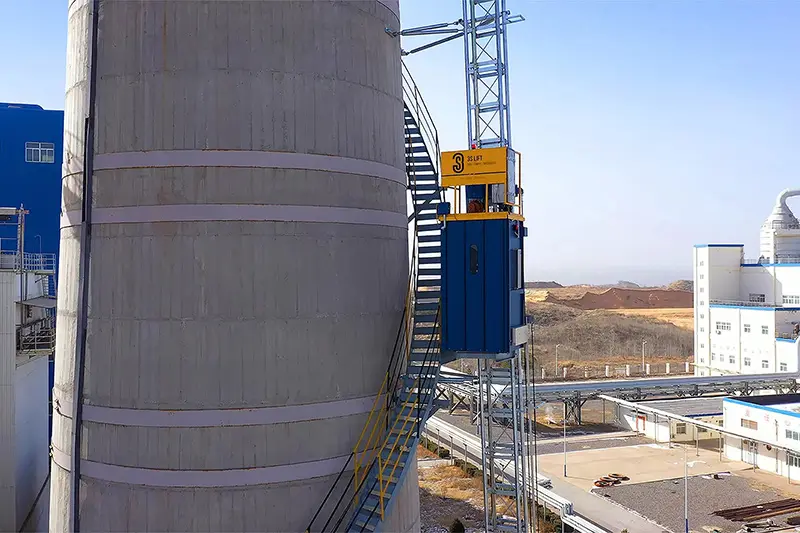

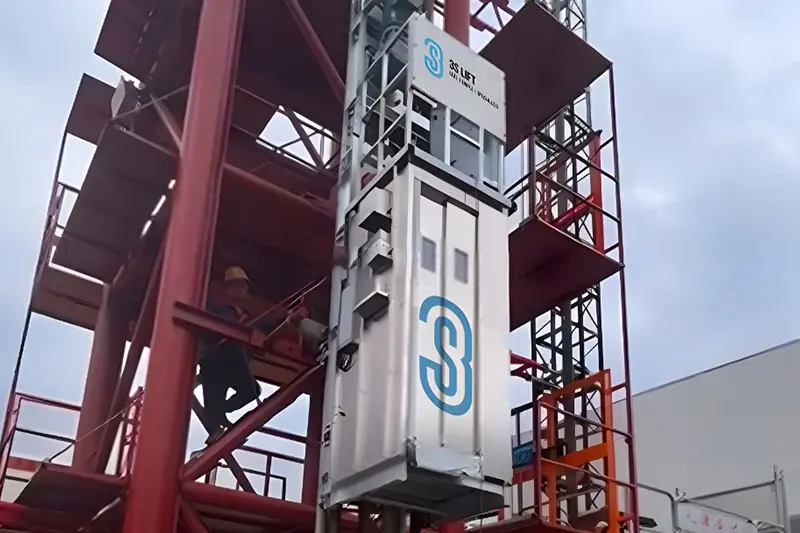

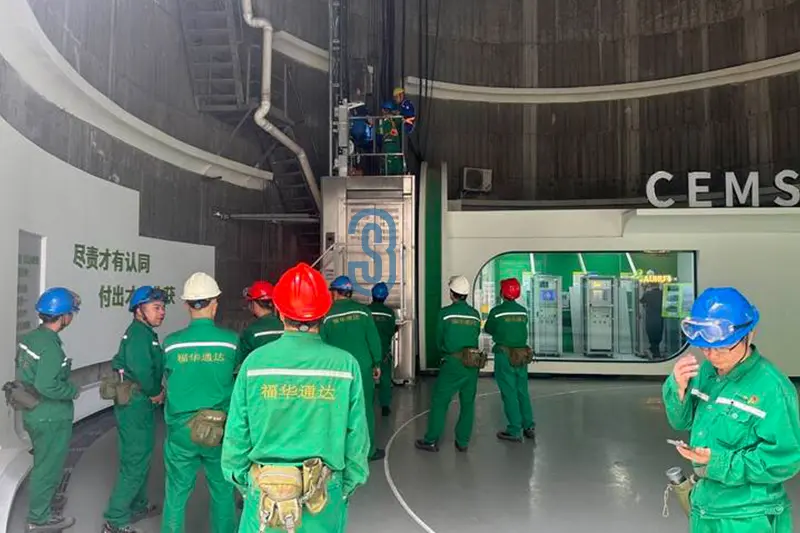

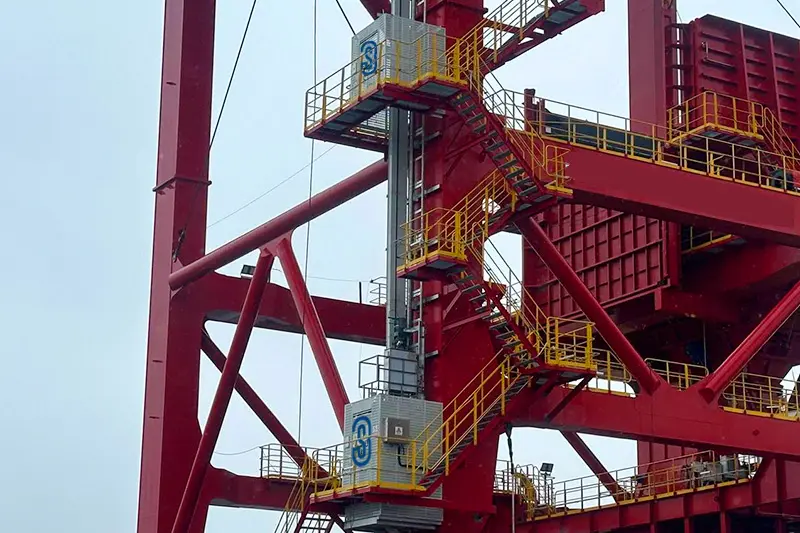

Applications
