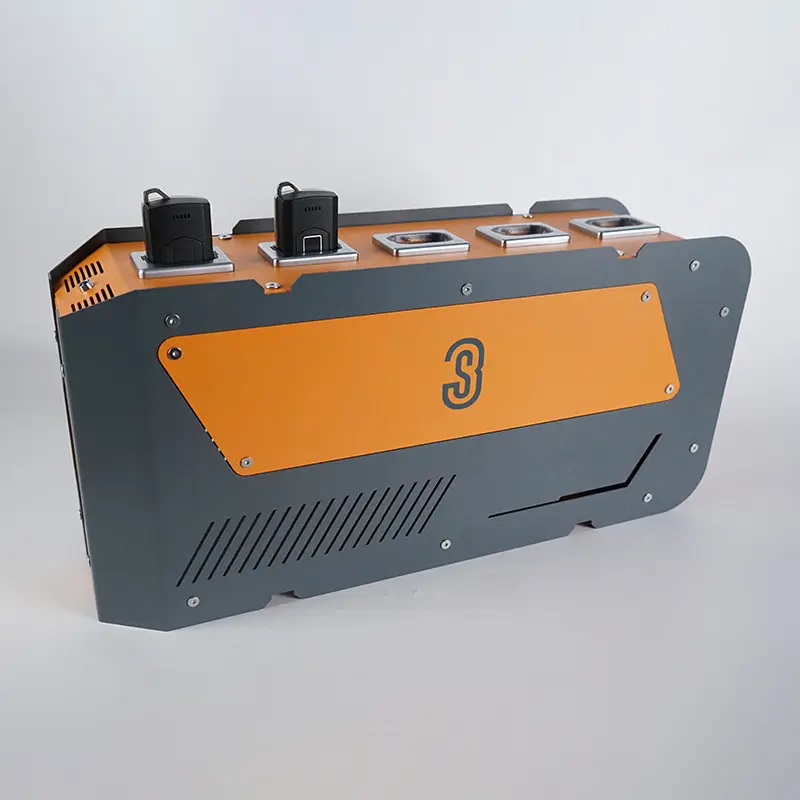

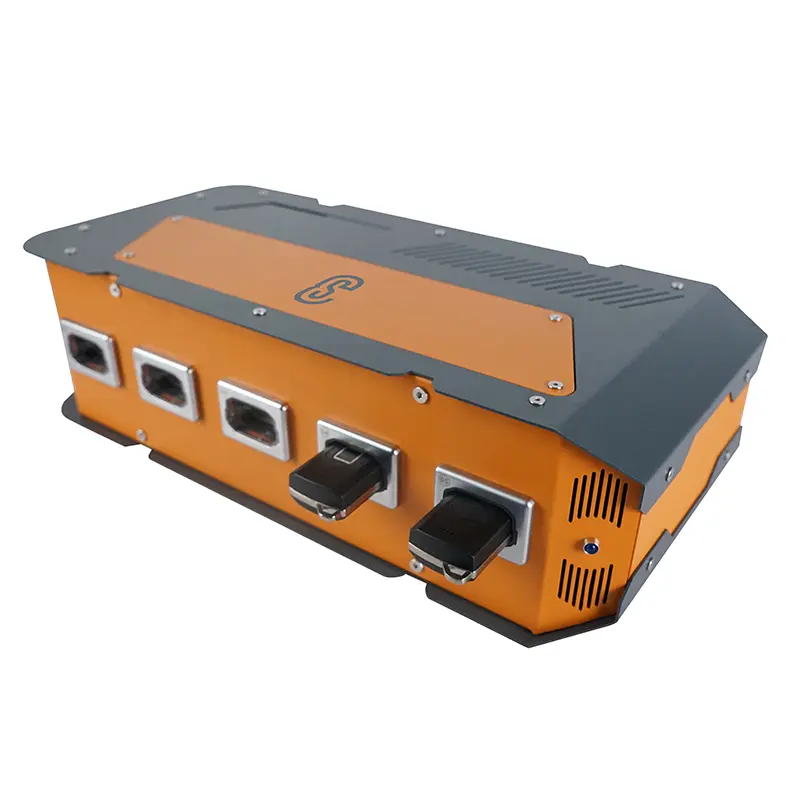

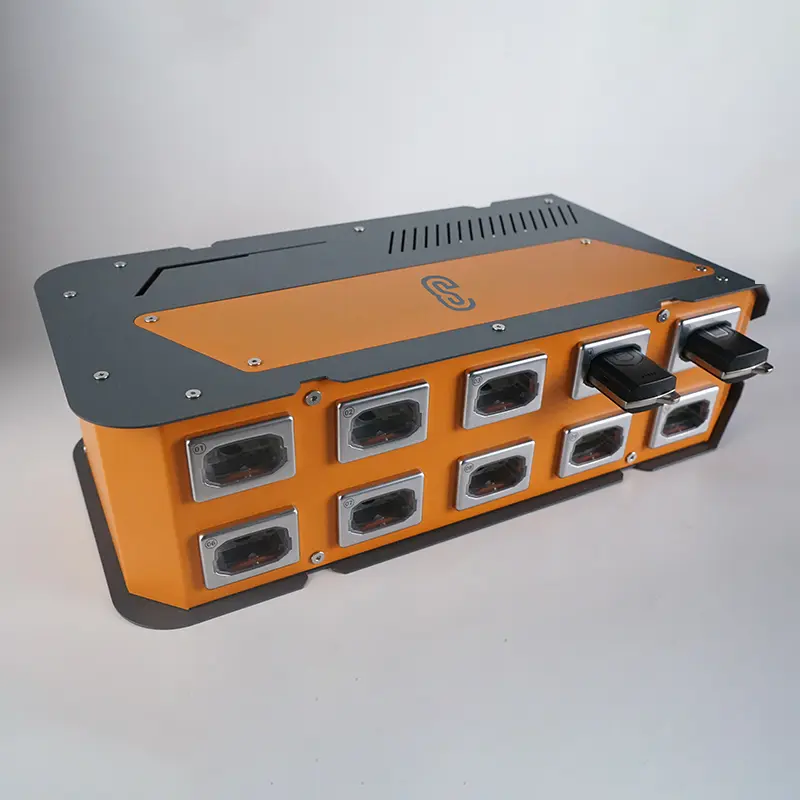

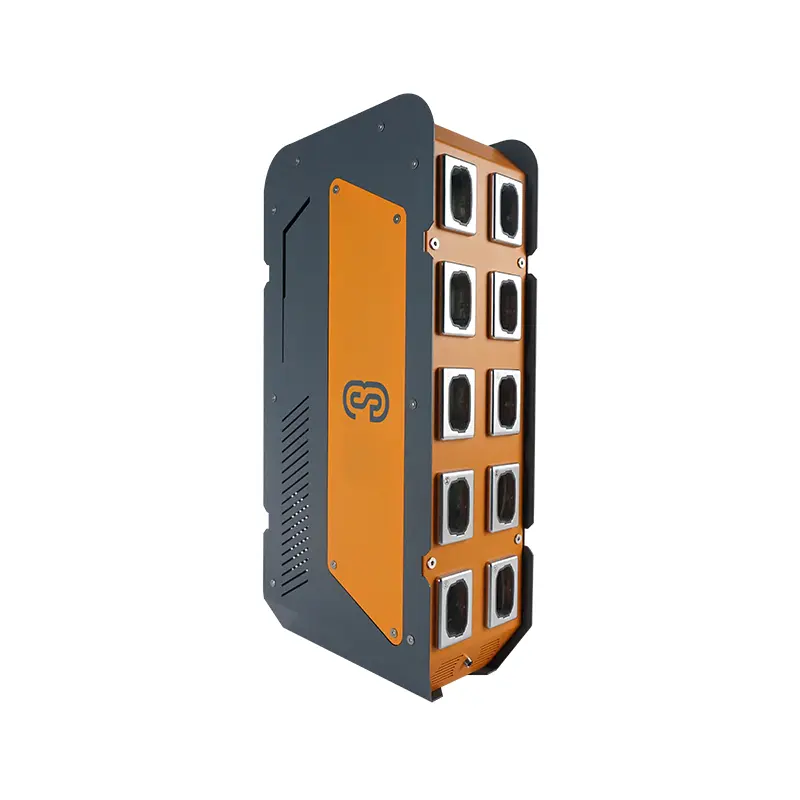

3S Smart key dock

The smart key dock provides centralized management for electronic key issuance and return, automatically uploads locking and unlocking records, and supports automatic key authorization, unlocking, and charging, with voice prompts for various status updates.

    Video

    Key Features

    The smart key dock supports the collection of lock IDs. When a key is inserted back into the host, it automatically uploads data and charges the key, with red and blue light indicators. It can manage no less than 5 keys simultaneously, and the status of each key can be monitored in the system. Unauthorized electronic keys cannot be removed from the host, while authorized keys will automatically pop out. After being reinserted, keys are automatically returned and registered.

    Specifications

    Product Model 3S-WLA-EKB
    Key number 5 to 30 (customizable), main box with 10 docks, auxiliary box with 5 docks
    Body Material 1.5mm cold-rolled steel plate
    Surface Treatment Electrostatic powder coating
    Operating System Android11
    Communication interface Ethernet RJ45
    Indicator Automatic charging, in position, communication, authorization
    Issuance and Return Automatic authorized release for issuance, automatic locking upon return, automatic record upload.
    Lock hole service life 1 million cycles
    Operating Voltage DC12V
    Dimensions 501.5Mm*240mm*(main box 143mm, auxiliary box77.5mm)
    Weight Main box: 7.3Kg Auxiliary box: 3.8Kg
    Operating Condition Temperature (-30°C to 70°C) Humidity (10% to 90%)

    Product Details

    3S-Passive-smartLock-and-Control-System-_013S-Passive-smartLock-and-Control-System-_023S-Passive-smartLock-and-Control-System-_033S-Passive-smartLock-and-Control-System-_043S-Passive-smartLock-and-Control-System_05
